Cleanroom Carts & Work Benches
Model 009259
Model 008473

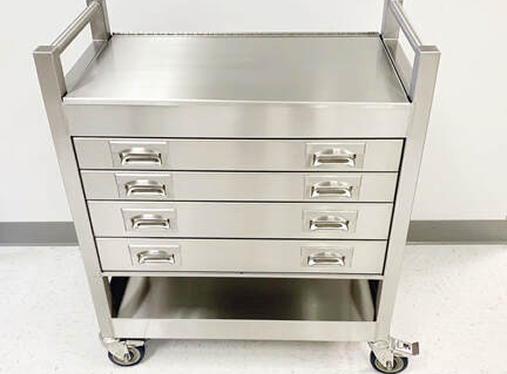

Multi Drawer Cart
Model 002487 Low Profile Cart
|
Model 009259
Model 008769 Enclosed Transport Cart
Model 007574 Cabinet on wheels
|
Model 007984
|
Model 008185 Small Cart
|
Model 006153 Autoclave cart
Model 008168 - Cleanroom Rolling ToolBox
Model 8326 125Kg Calibrated Weight Cart
|
Model 007245
Model 007456- Scale cart
Model 003322
|
Model 005336 Funnel cart
Model 004914 Pump Cart
|
Model 4228 Heavy Duty Cleanroom Transport Cart
|
Choosing Correct Casters For Cleanroom Carts
There are many factors to consider when selecting the proper caster for your application.
Maximum weight the cart will carry
Casters come with a weight rating. It is important to determine what the maximum weight the cart will hold is. A good standard of practice is have casters be able to hold 3 times the expected load. This is relatively easy to achieve because the weight is divided by 4 ( most carts typically have 4 casters). If the expected load is 417.25 Lbs. (50 Gallons of water) each caster should have a minimum rating of 104 Lbs. We would use a caster with a weight rating of 325Lbs capacity. As show in the photo above , this cart could hold 1248Lbs.
Chemicals they will be exposed to
Most clean-room decontamination chemicals will cause rusting on steel fork casters almost overnight. It is recommended that Stainless Steel forks ,bearings and brakes be utilized. The wheels itself should be made from corrosion resistant thermoplastic. Thermoplastic is perfect for wash down and steam clean applications. It will also reject any floor debris that it comes in contact with.
Heat they will be exposed to.
If your cart is going into an autoclave or dry heat oven, a phenolic resin wheel with grease-less bearings is to be utilized. These hard rigid wheels have the maximum heat resistance. Because they are very hard, they are not the smoothest rolling wheels. As the temperature rises the elasticity changes. The phenolic resin wheels maintain their weight capacity in extreme heat.
Surfaces they will be rolling on.
Most cleanroom floors are terrazzo or epoxy finished floors. It is usually a smooth surface.The key here is choosing non marking caster. If the cart will be rolling over grating or very rough surfaces a pneumatic inflatable wheel is an option.
Bosio specializes in clean-room transport carts we have a wide variety of standard designs and all can be customized to your exact specifications.
All carts show can be fully customized Bosio specializes in custom stainless steel carts for laboratories and clean rooms
- Published on Published onAugust 28, 2015
There are many factors to consider when selecting the proper caster for your application.
Maximum weight the cart will carry
Casters come with a weight rating. It is important to determine what the maximum weight the cart will hold is. A good standard of practice is have casters be able to hold 3 times the expected load. This is relatively easy to achieve because the weight is divided by 4 ( most carts typically have 4 casters). If the expected load is 417.25 Lbs. (50 Gallons of water) each caster should have a minimum rating of 104 Lbs. We would use a caster with a weight rating of 325Lbs capacity. As show in the photo above , this cart could hold 1248Lbs.
Chemicals they will be exposed to
Most clean-room decontamination chemicals will cause rusting on steel fork casters almost overnight. It is recommended that Stainless Steel forks ,bearings and brakes be utilized. The wheels itself should be made from corrosion resistant thermoplastic. Thermoplastic is perfect for wash down and steam clean applications. It will also reject any floor debris that it comes in contact with.
Heat they will be exposed to.
If your cart is going into an autoclave or dry heat oven, a phenolic resin wheel with grease-less bearings is to be utilized. These hard rigid wheels have the maximum heat resistance. Because they are very hard, they are not the smoothest rolling wheels. As the temperature rises the elasticity changes. The phenolic resin wheels maintain their weight capacity in extreme heat.
Surfaces they will be rolling on.
Most cleanroom floors are terrazzo or epoxy finished floors. It is usually a smooth surface.The key here is choosing non marking caster. If the cart will be rolling over grating or very rough surfaces a pneumatic inflatable wheel is an option.
Bosio specializes in clean-room transport carts we have a wide variety of standard designs and all can be customized to your exact specifications.
All carts show can be fully customized Bosio specializes in custom stainless steel carts for laboratories and clean rooms
This caster is the superstar of casters. It is chemical resistant, heat resistant and corrosion resistant. It has all stainless components. The 5'' version can hold over 325Lbs. Bosio uses these on 98% of their carts.
